Producto:

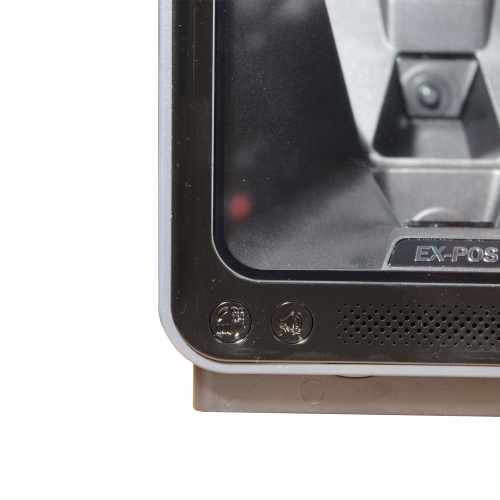

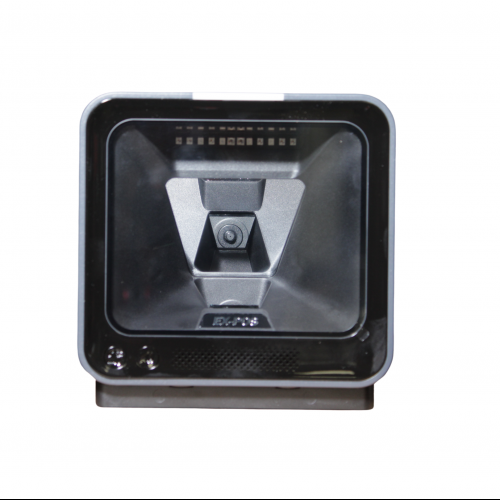

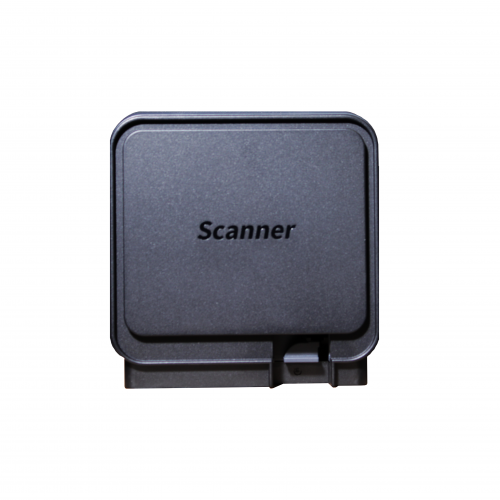

Escáner de código de barras de imágenes 2D | MP7600L

Performance
Image Sensor
MP7600L: CMOS 640*480
Light Source
Red LED + LED
Scan Angle
Skew±70° Pitch±60° Roll 360°
FOV
D=35.2° H=29.7° V=22.9°
Resolution
≥5mil
Minimum Print Contrast
≥20%
Decode Capacity
1D
Codabar, Code 11, Code 128, Code 39, Code 32, Code 93, EAN-8, EAN-13, ISBN, ISSN, UPC-A, UPC-E, GS1 DataBar, ISBT128, NEC 2 of 5, MSI Plessey, GS1 128, Industrial 2 of 5, Telepen, Interleaved 2 of 5, Matrix 2 of 5, Hong Kong 2 of 5, Postal Code, Trioptic, Straight 2 of 5 IATA
2D
QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, HANXIN, Aztec Code, Maxi code
Typical Decode Range
Code39（5mil）
0mm~35mm
Barcode Size：25mm*10mm
EAN-13（13mil）
0mm~210mm
Barcode Size：31mm*17mm
QR（15mil）
0mm~180mm
Barcode Size：8mm*8mm
Physical characteristics
Interface
USB / RS232
Operating Voltage
5 VDC±5%
Operating Current(typical)
450mA（5 VDC）
Operating Current(Max)
480mA（5 VDC）
Standby Current
220mA（5 VDC）
Power Consumption
2250mW
Dimension(not with stand)
145(W)×77(D)×136(H)mm
Dimension(with stand)
145(W)×84.5(D)×147(H)mm
Color
Gray-blue
Net weight
415g（not with stand） / 520g（include stand）
Country Keyboards
30 country keyboard
Indication
LED indicator, Beeper
Environmental
Operating Temperature
-10℃ ~ 50℃
Storage Temperature
-20℃ ~ 60℃
Humidity
5% ~ 95%（Non-condensing）
Drop
Can withstand multiple drops from a height of 1m onto a concrete floor.
IP Level
IP52
ESD
EN61000-4-2，±6KV direct charge，±15KV air charge
Ambient Light
0~100,000LUX
LED Safety
IEC 62471
Accessories
USB Cable
For data transmission, power supply.
RS232 Cable
For data transmission, power supply.
Stand
Flexible installation
