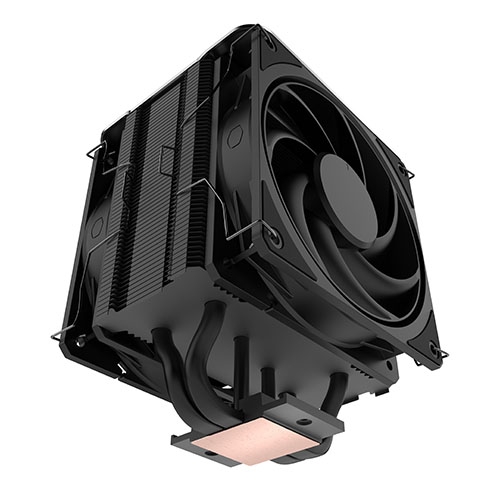

Product Name V4 Alpha 3DHP Black
Product Number MAZ-T2HP-217PK-R1
Exterior Color Black
CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket
CPU Socket AMD® AM5 / AM4 Socket
Dimension 133 x 114 x 161 mm | 5.2 x 4.5 x 6.3 inch
Heat Sink Material 2 x 3DHP / Aluminum Fins

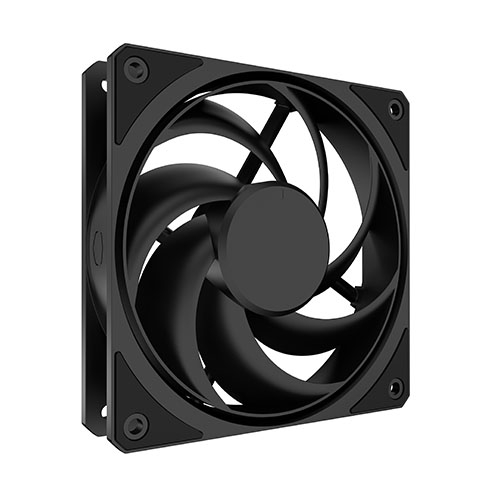

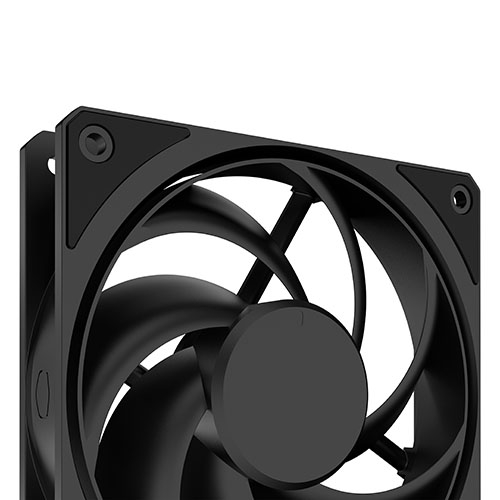

Fan Item Front / Rear
Fan Dimensions (L x W x H) 120 x 120 x 25mm
Fan LED Profiles Non-LED
Fan Quantity Front: 1, Rear: 1
Fan Speed Front: 0-2050 RPM​ ± 10%, Rear: 0-1850 RPM​ ± 10%,
Fan Airflow Front: 107.2 m³/h (63.1 CFM), Rear: 85.8 m³/h (50.5 CFM)
Fan Pressure Front: 2.69 mmH2O, Rear: 1.77 mmH2O
Fan MTTF >200,000 Hours
Fan Pressure Front: 22.6 dBA, Rear: 20 dBA
Fan Bearing Type Loop Dynamic Bearing
Fan Power Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current Front: 0.12 A, Rear: 0.08 A
Fan Safety Current 0.35A
Fan Power Consumption Front: 1.44 W, Rear: 0.96 W
Warranty 5 years
Series V
Fan Size 120
Heatpipes 2
Cooler Type Air Cooler
