CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
CPU Socket AMD® AM5 / AM4
Radiator Material Aluminum

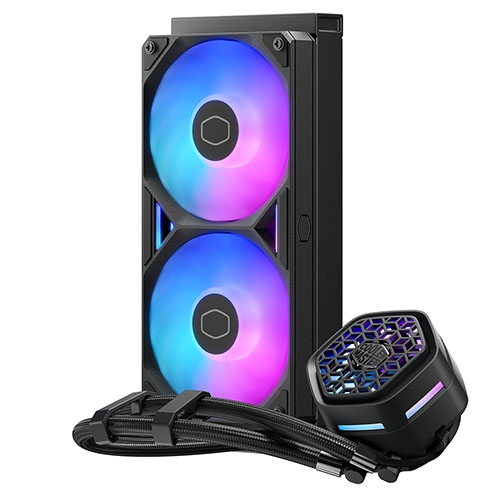

Radiator Dimensions (240) - 277 x 119.2 x 27 mm (10.9 x 4.7 x 1.1 inch)

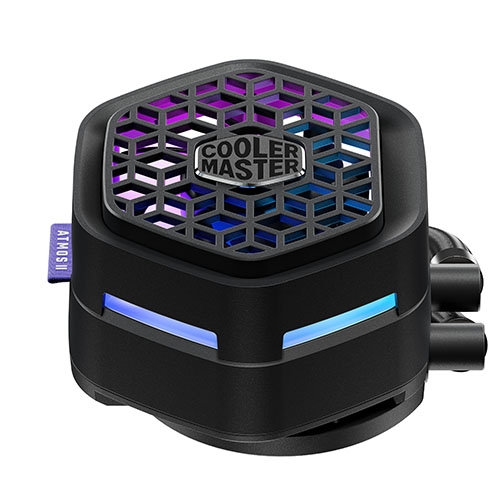

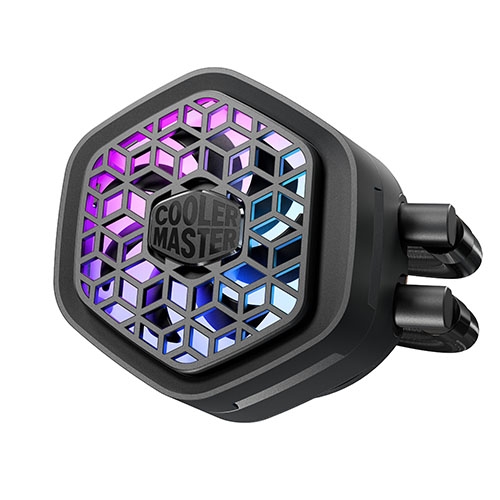

Pump Dimensions 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
Pump Profiles Addressable Gen2 RGB
Pump Speed 3400 ± 300 RPM
Pump MTTF >210,000 Hours
Pump Noise Level 25 dBA (Max)
Pump Rated Voltage 12 VDC
Pump Power Consumption 3.84 W
Pump Connector 3-Pin ARGB + 4-Pin PWM
Tube Length (240) 350 mm
Fan Dimensions (L x W x H) (240) 241 x 122 x 26.5 mm (9.5 x 4.8 x 1 inch)
Profile Addressable Gen 2 RGB
Fan Quantity 3 PC
Fan Speed 690 ~ 2500 RPM ± 15%
Fan Airflow (240) 240.35 m³/h (141.4 CFM)
Fan Air Pressure 3.61 mmH2O
Fan MTTF >160,000 Hours
Fan Noise Level (240) 36 dB(A)
Fan Bearing Type Loop Dynamic Bearing
Fan Connector 7-Pin PWM + ARGB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.5 A
Fan Safety Current 0.8 A
Fan Power Consumption 6 W
Radiator Size 240
Cooler Type Liquid Cooler
Series MasterLiquid
VRM Fan Exterior Color Black / White
VRM Fan Dimensions 85 x 78.5 x 25.5 mm (3.4 x 3.1 x 1 inch)
VRM Fan Wire Length 1000 mm
VRM Fan Fan Speed 450~4000 RPM ±10%
VRM Fan Fan Airflow 15.8 m³/h (9.3 CFM)
VRM Fan Fan Air Pressure 2.8 mmH₂O
VRM Fan Fan Noise Level 36 dB (A)
VRM Fan Fan MTTF >50,000 Hours
VRM Fan Fan Bearing Type Loop Dynamic Bearing
VRM Fan Fan Connector 4-Pin PWM
VRM Fan Fan Rated Voltage 12 VDC
VRM Fan Fan Rated Current 0.15 A
VRM Fan Fan Safety Current 0.25 A
VRM Fan Power Consumption 1.8 W
Warranty 6 years
