Manufacturer Part Number SIGMA620 BK
Colour Black
Overall Dimension (L)120*(W)114.2*(H)158.8mm
TDP 245W
Fins 48 aluminum Fins
Heat Pipes 6mm heatpipe x 6 units

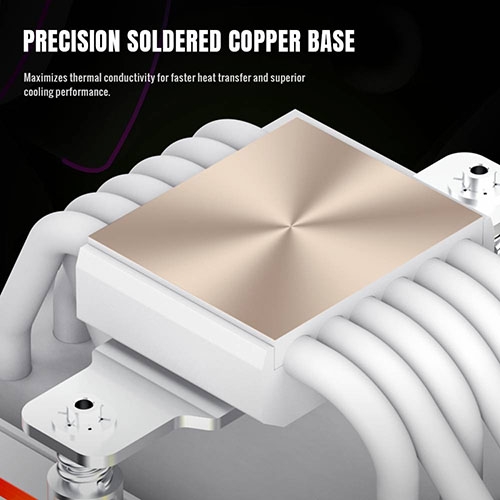

Heat Base Material Soldering copper bottoms

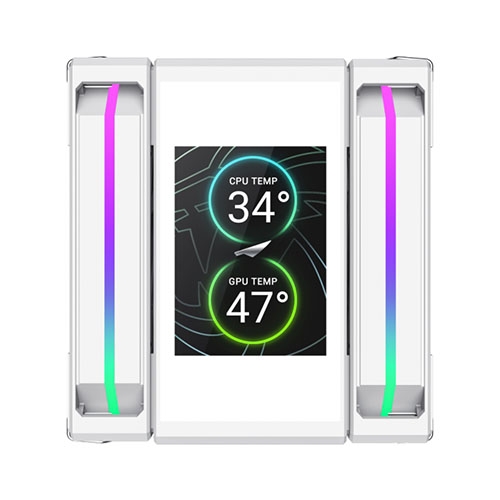

Top cover type 2.8’’ LCD Monitor
CPU Compatibility
INTEL:LGA1851/1700/1200/115X
AMD:AM5/AM4

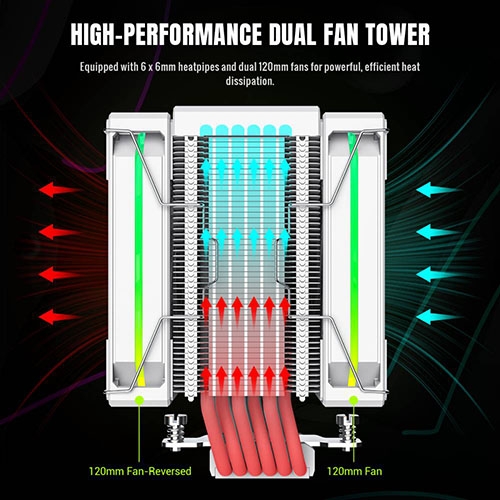

Fan Type
Main fan positive blade
Secondary Fan Reverse Blade
Fan Dimensions 120*120*25mm
120*120*25mm
Bearing Type Rifle Bearing
Rifle Bearing
Fan Frame Colour Black
Black
Fan Blades / Colour 9 fan leaf/BLACK
9 fan leaf/BLACK
LED Qty / Type: 28/ARGB
28/ARGB
Rated Voltage 12V
12V
Start-up voltage 5.0V
5.0V
Rated Current 0.22A
0.2A
Rated power 2.64W
2.4W
Fan Speed 800-1800RPM±10%
800-1800RPM±10%
Air Flow 71.66CFM（Max.）
70.71CFM（Max.）
Static Air Pressure 2.54mm H2O（Max.）
2.1mm H2O（Max.）
Noise Level 35.5dBA（Max.）
42dBA（Max.）
FAN Life 30000 Hours
30000 Hours
Connector 3pin AURA & 4pin PWM
Package Contents Gift Box
Unit Packaging Dimensions TBU
Net Weight 154g
Gross Weight 164g
