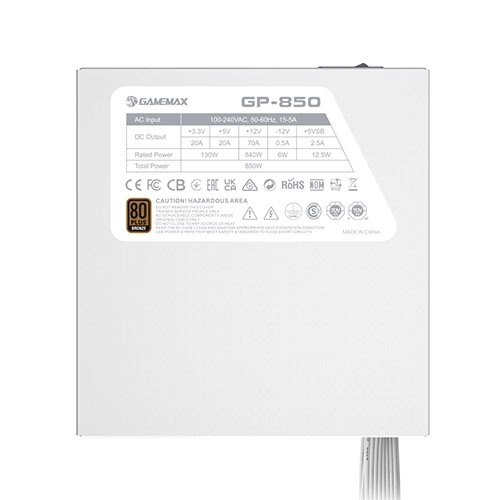

| AC INPUT: 100-240 VAC 15-8A 50-60Hz | ||||||
| DC Output Max |
+3.3V | +5V | +12V1 | +12V2 | -12V | +5VSB |
| 20A | 20A | 70A | - | 0.5A | 2.5A | |
| 850W | ||||||
 |
20+4 Pin Main Connectors: 1 |
 |
4+4 Pin 12V Connectors: 1 |
 |
SATA Connectors: 7 |
 |
4-Pin Molex Connectors: 3 |
 |
6+2 Pin PCI-e Connectors: 4 |
| Dimensions: | 158mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 15-8A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >17ms |
| Efficiency: | > 81% (85% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP/AFC |
| Power: | 850W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |

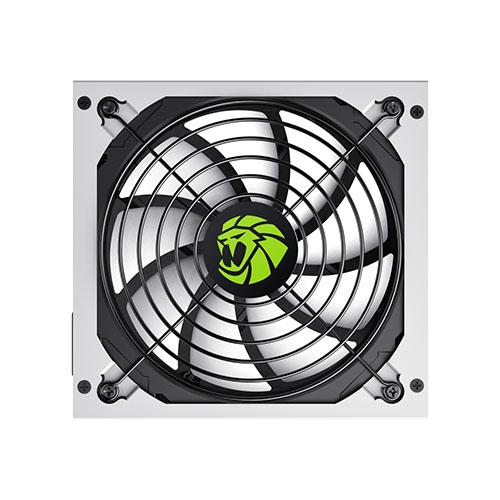

| Cooling: | 140mm Ultra Silent Fan |
| Noise: | <25dBa |
| 80 Plus Certified: | Yes - 80 Plus Bronze |
